Multifunctional Computer Side Sealing Bag making Machine

Multifunctional Computer Heat-cutting Bag-making Machine
Multifunctional Computer Heat-cutting Bag-making Machine

Introduction:

This machine is suitable for thermal cutting and bag making of such printing and non printing film as BOPP. OPP and PE etc. It is a kind of ideal equipment for making sock bag, bread bag,ornaments bag, towel bag etc.



Main Technical Variables:

Model

RQL-600

RQL-800

RQL-900

RQL-1000

Max. Bag Width

600mm

800mm

900mm

1000mm

Max bag Length

50-500mm

50-700mm

50-700mm

50-700mm

Max.Width of Bag-Making

500mm

700mm

800mm

900mm

Production Capacity

40-140pcs/min

40-140pcs/min

40-140pcs/min

40-140pcs/min

Total Power

3.6kw

3.8kw

4.5kw

4.7kw

Weight of Machine

900kg

1000kg

1100kg

1200kg

Overall Dimensions

3500*1100*1800mm

3500*1200*1800mm

3500*1300*1800mm

3500*1400*1800mm



Usage 1: it can make bread bag and clothes bag

Unwinder part:

Unwinder with stronger shaft and spring tension

Unwinder:

Automatic Tension and EPC. Which can control the tension and edge automatically

Gusset parts:

with Plastic gusset plate. We can do bottom gusset.

Opening Parts:

with stainless shaft

Adhesive tape parts:

For adhesive tape, can be movable

Puncher Parts:

6mm punching holes, Die cutting puncher is optional

Conveyor:

with high quality tape, PU material, best quality

Sealing Knife:

Which is used Hard steel, so it cannot broken. And we use Heating tube which can heat the knife quickly from inside.

Servo motor:

Yaskawa brand from Japan, Longer life to more 5 years

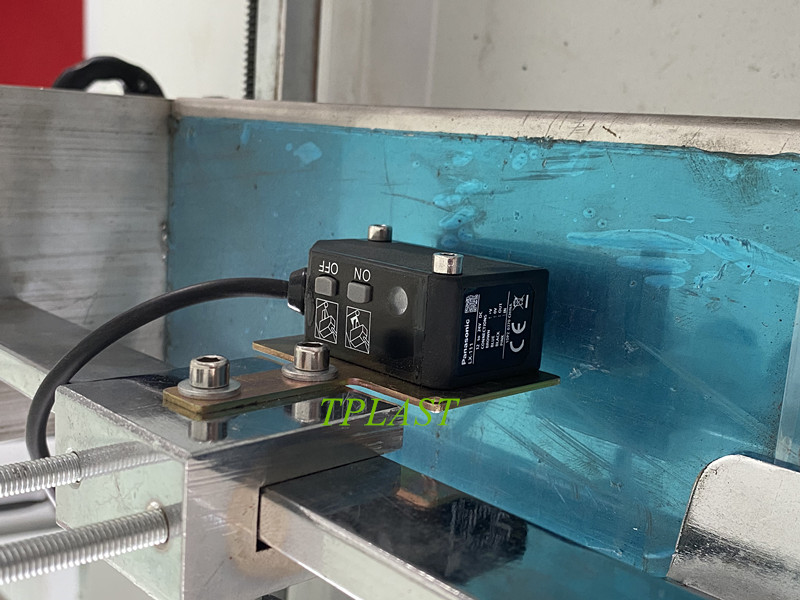

Photocell:

Sick Photocell from Germany, Excellent tracking printing mark

Unwinder Motor:

Best AC motor with gearbox, 0.75kw power, Eura Inverter controlling. Long life to more 10 years. Which is better than DC motor controlling.

Machine Details:

1, Eura Brand inverter from taiwan, Excellent performance at the braking the motor,
2, Computer controlling, easily to control and setting.

Whole Machine
